Networking Resources

Overview

Now, we will review our resources. Access the VPC interface and view some resources such as our VPC, Public Subnets, Internet Gateway and Security Group.

VPC

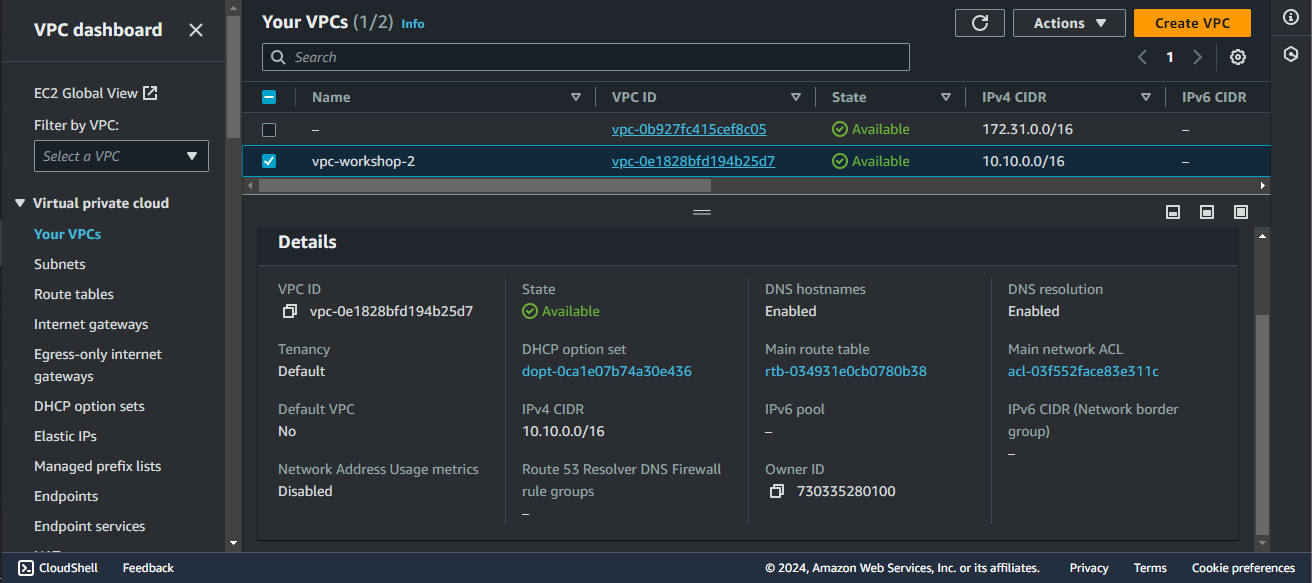

  • VPC with CIDR 10.10.0.0/16

ConnectPrivate

2 Public Subnets

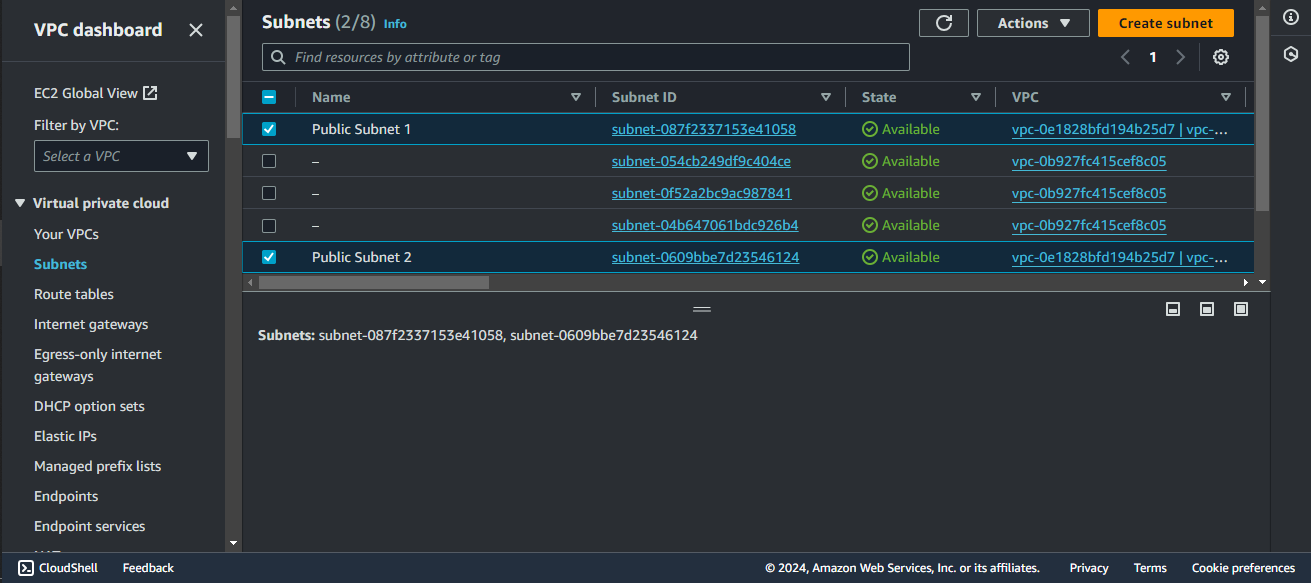

  • Public Subnet 1 with CIDR 10.10.1.0/24
  • Public Subnet 2 with CIDR 10.10.2.0/24

ConnectPrivate

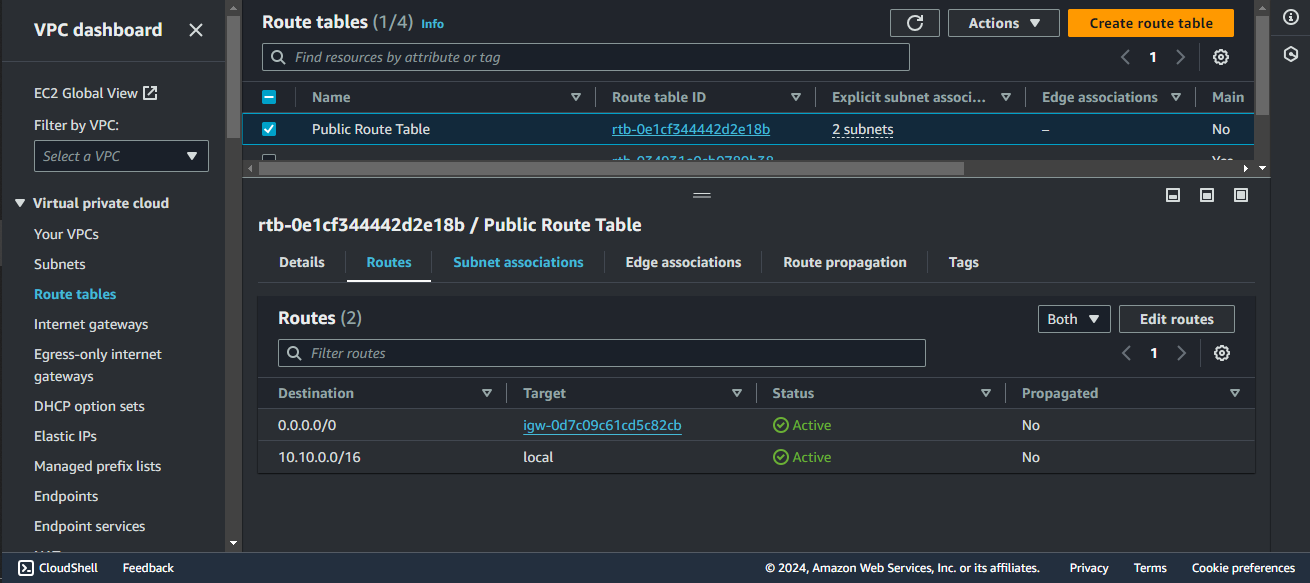

Public Route Table

ConnectPrivate

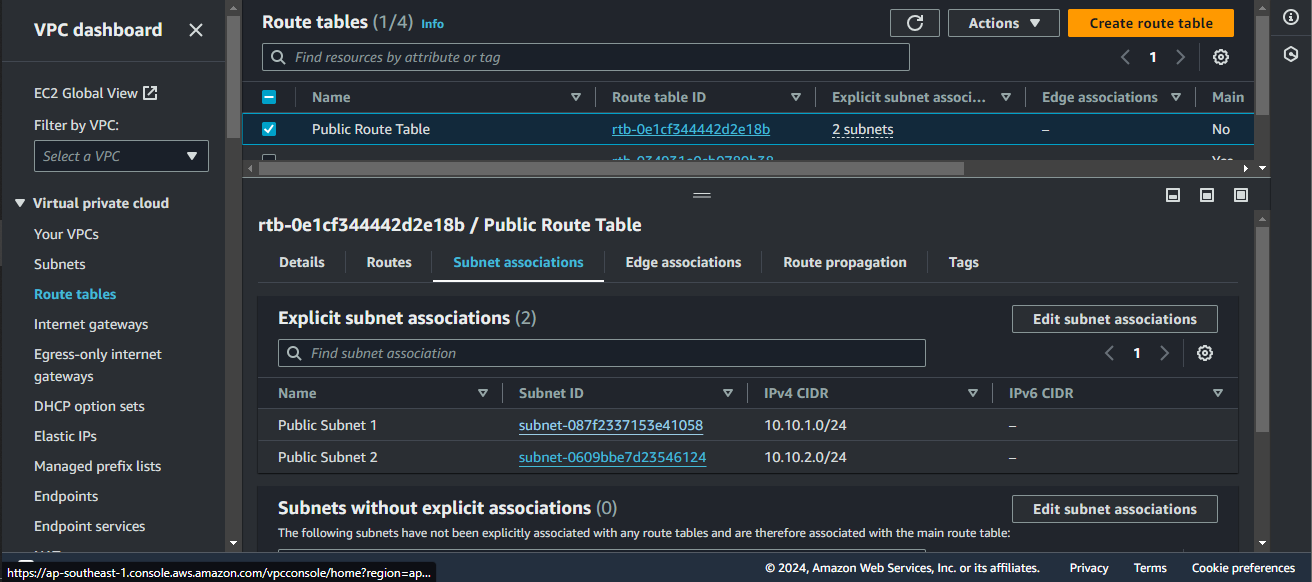

  • Subnet associations

ConnectPrivate

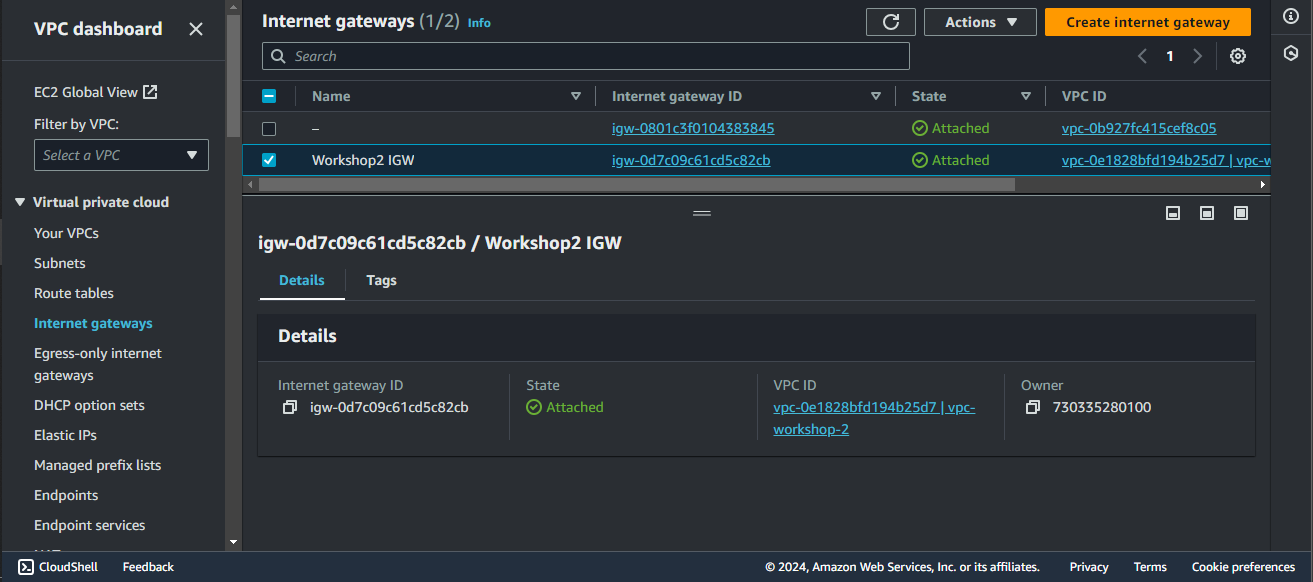

Internet Gateway

  • The internet gateway is attached to the VPC.

ConnectPrivate

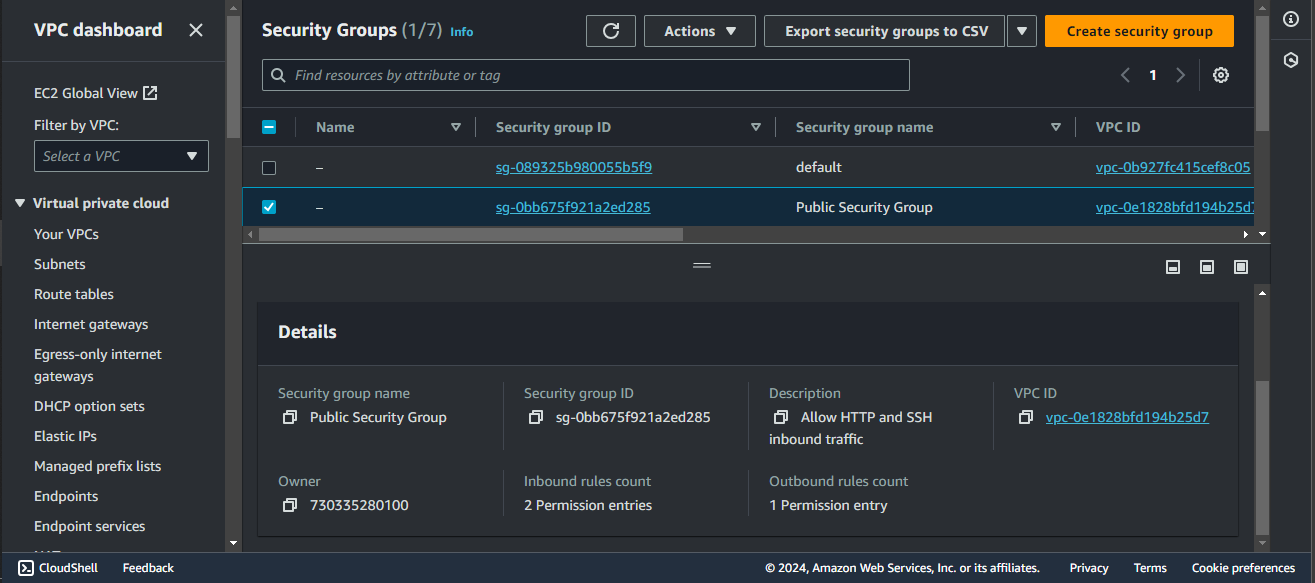

Public Security Group

ConnectPrivate

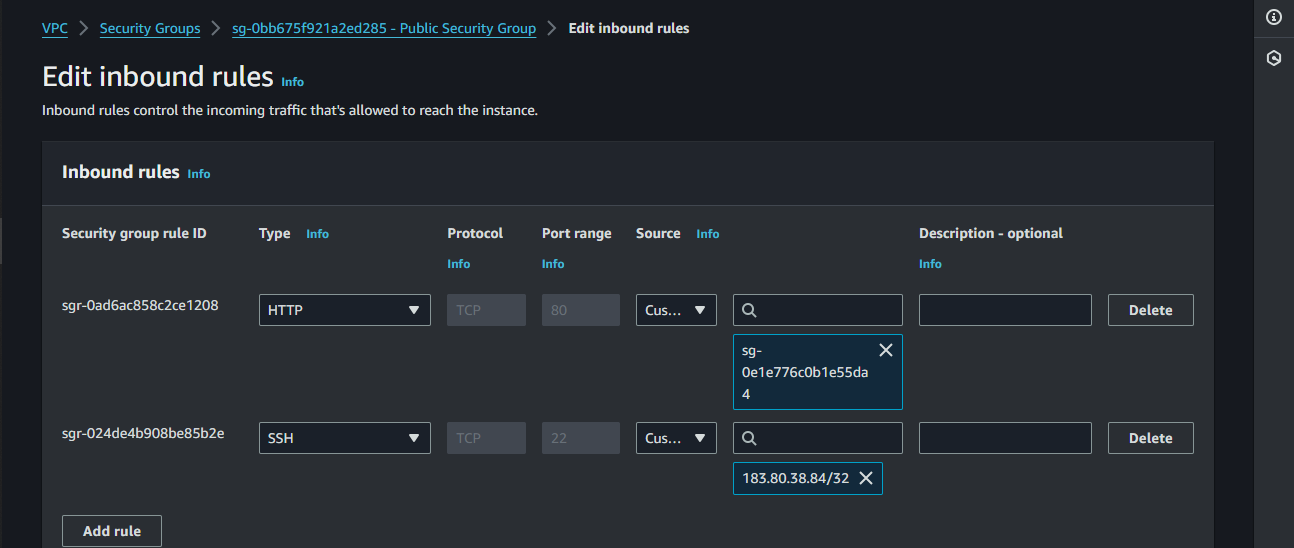

2 Inbound rules:

  • Allow SSH from the local IP address
  • Allow HTTP from the ALB Security Group

ConnectPrivate

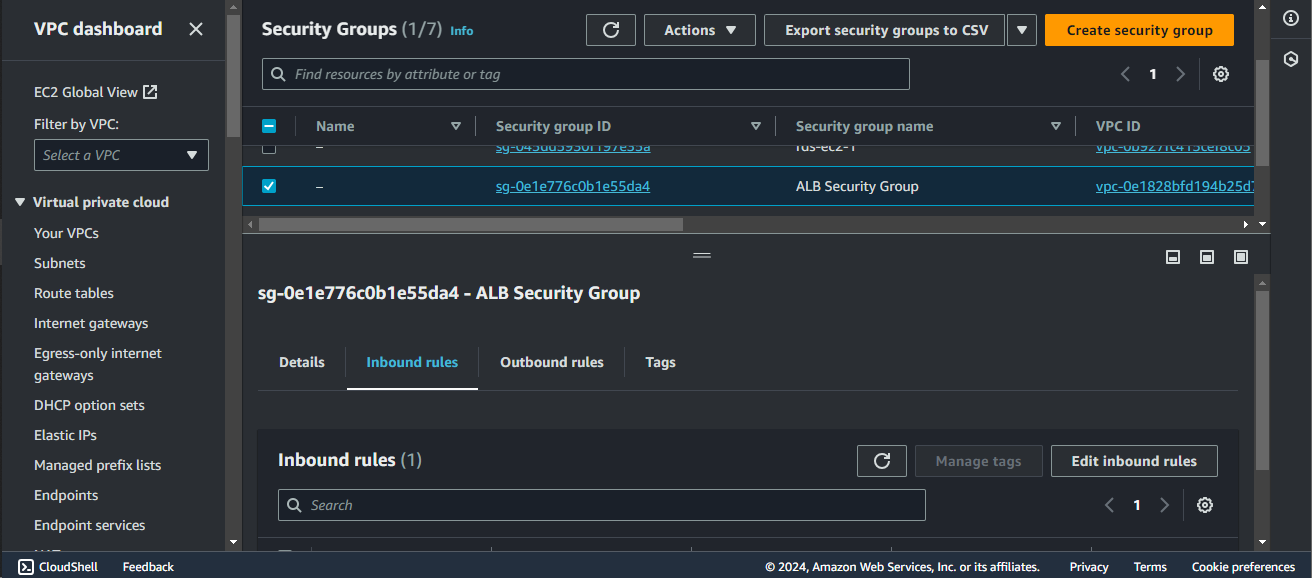

ALB Security Group

ConnectPrivate

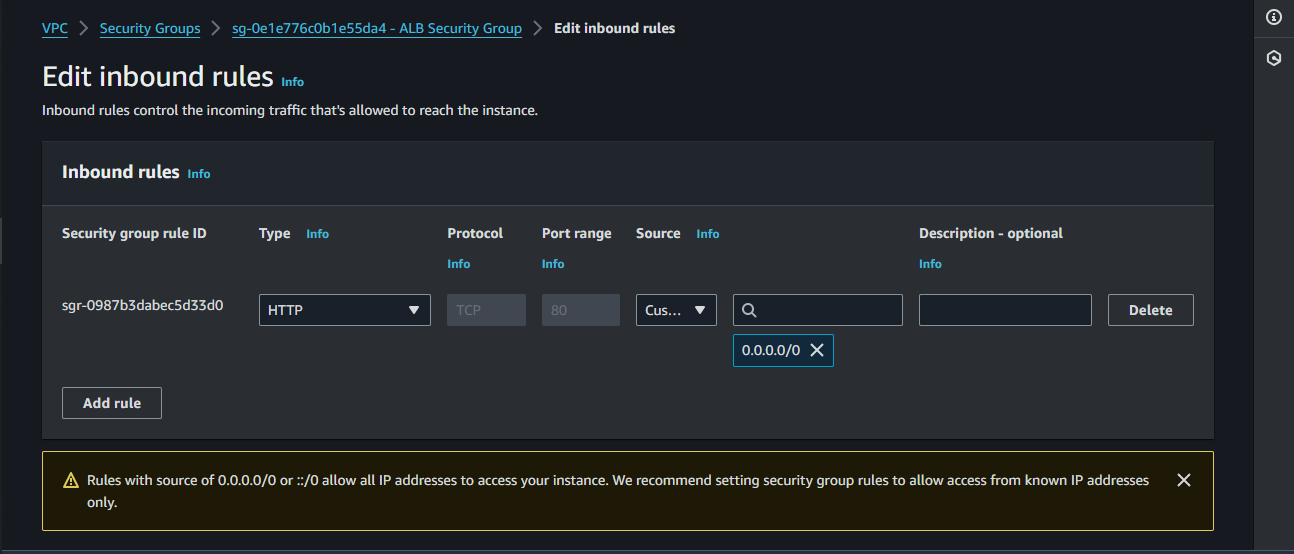

1 Inbound rule:

  • Allow HTTP request from the internet

ConnectPrivate

Now, let’s move on to see our Compute resources.
